EPIA-M900 (EOL)

  • Compact 17cm x 17cm Mini-ITX form factor
  • 1.2GHz VIA QuadCore E-Series/1.6GHz VIA Nano® X2 E-Series processor
  • Fanless 1.0GHz VIA Eden® X2 processor option
  • DX9 graphics with MPEG-2/WMV9/VC1/H.264 decoding acceleration
  • Advanced I/O and connectivity features

Overview

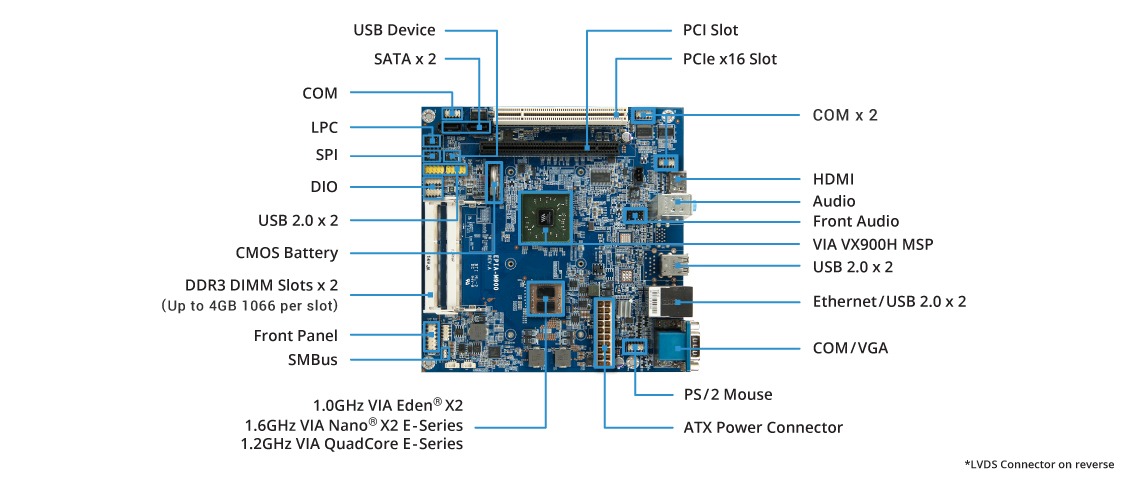

VIA EPIA-M900 Mini-ITX Board

The VIA EPIA-M900 is a highly-integrated Mini-ITX board that combines a choice of low-power VIA QuadCore E-Series, VIA Nano® X2 E-Series, and VIA Eden® X2 multi-core processors with a rich array of advanced I/O and connectivity features to provide a reliable and easily-expandable solution for a broad spectrum of embedded system applications, including POS, kiosk, gaming, digital signage, healthcare, and digital media.


Hardware

Based on the Mini-ITX form factor measuring 17cm x 17cm, the VIA EPIA-M900 features the VIA VX900H MSP and offers a rich set of I/O and connectivity features, including onboard HDMI and VGA ports, a two 18/24-bit LVDS connector, up to two Gigabit Ethernet ports, and support for up to eight USB 2.0 ports and four COM ports.

Software

The VIA EPIA-M900 is compatible with Windows® 7, Windows® CE 7.0, Windows® CE 6.0, Windows® CE 5.0, Windows® XP, as well as most popular Linux distributions. A wide range of software development tools are also available, including the VIA Smart ETK.

Expandability

The functionality of the VIA EPIA-M900 can be further enhanced with the integration of an optional high-speed Wi-Fi module and PCI riser card.

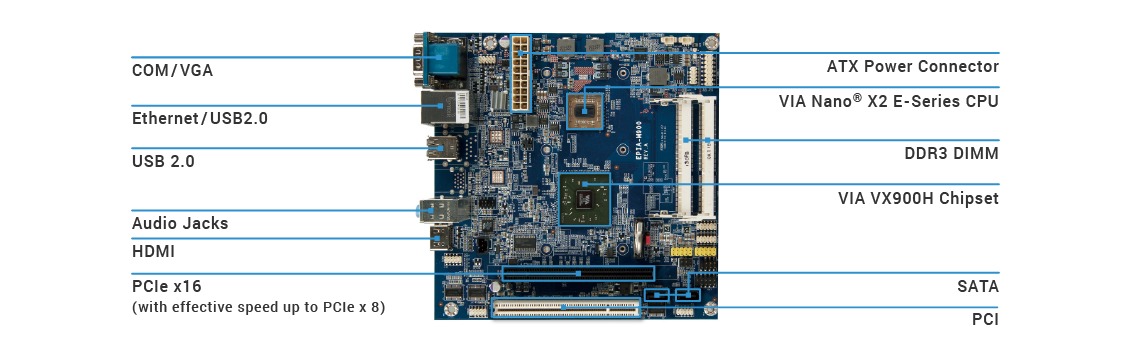

Datasheet

Get the PDF version of the EPIA-M900 datasheet, or browse the information below:

Model NameEPIA-M900
Processor-12LQ: 1.2GHz VIA QuadCore E-Series (with fan)
-16L: 1.6GHz VIA Nano® X2 E-Series (with fan)
-10LE: 1.0GHz VIA Eden® X2 (fanless)
ChipsetVIA VX900H Media System Processor
BIOSAMI BIOS, 8Mbit Flash memory
System Memory2 DDR3 1066 DIMM slots
Up to 4GB memory size per slot
Storage2 SATA connectors
GraphicsIntegrated VIA C-9 HD DX9 3D/2D graphics with MPEG-2, WMV9, VC1 and H.264 video decoding acceleration
LAN1 Default VIA VT6130 PCIe Gigabit Ethernet controller; additional manufacturing option
AudioVIA VT2021 High Definition Audio Codec
Super I/OFintek 81865F-I
Expansion I/O1 PCI slot
1 PCIe x16 slot
Onboard I/O2 SATA connectors
2 USB 2.0 pin headers for 4 ports
1 Dual-channel 24-bit LVDS panel connector
3 COM port pin headers
1 LPC pin header
1 SMBus pin header
1 S/PDIF-out connector
2 Digital I/O (8 GPI + 8 GPO)
1 Front-audio pin header for Line-out, Mic-in
2 Smart Fan pin headers for CPU and system
1 Backlight control for inverter power and brightness control
1 ATX power connector
1 PCI slot (on edge)
1 PCIe x16 slot (with effective speed up to PCIe x8)
Back Panel I/O4 USB 2.0 ports
1 HDMI port
1 VGA port
1 COM port
1 Gigabit Ethernet port
3 Audio jacks: Line-in, Line-out and Mic-in
Power SupplyATX power connector
Operating SystemWindows® 7, WES 7, Windows® CE, Linux
System Monitoring and ManagementWake-on-LAN, Keyboard Power-on, Timer Power-on, System power management, AC power failure recovery, Watch Dog Timer
Operating Temperature0°C ~ 60°C
Operating Humidity0% ~ 95% (non-condensing)
Form FactorMini-ITX (17cm x 17cm, 6.7" x 6.7")
ComplianceCE/FCC

Downloads

EPIA-M900 Documentation

DocumentVersionDate
User Manualv1.492013 06 25

EPIA-M900 BIOS / BIOS Flash Utility

SoftwareVersionDate
BIOSv1.072012 04 27
BIOS Flash Utility for DOSv1.054a2013 05 22

EPIA-M900 Driver Downloads

Driver
VersionDate
Windows® 7 64bit
Audiov8.700e2010 08 04
Ethernetv1.39a2011 04 26
HDMI Audiov1.00a2010 07 06
Hyperion Pro 4 in 1v3.20a2009 11 26
VGAv24.15.01h2011 09 29
Windows® 7 32bit
Audiov8.700e2010 08 04
Ethernetv1.39a2011 04 26
HDMI Audiov1.00a2010 07 06
Hyperion Pro 4 in 1v3.20a2009 11 26
VGAv24.15.01h2011 09 29
Windows® XP 32bit
Audio
v8.700e2010 08 04
Ethernetv1.70a2011 03 31
HDMI Audiov1.002010 07 06
Hyperion Pro 4 in 1v3.20a2009 11 26
USB 2.0v2.702005 09 27
VGAv20.15.01c2011 08 22
Windows® CE7
Windows® CE7 BSPv7.0.22012 07 05
Windows® CE6
Windows® CE6 BSPv6.01.482010 09 02
Windows® CE5
Windows® CE5 BSPv5.01.482010 11 29

Ordering

EPIA-M900 Ordering Information

Part NumberCPUDescription
EPIA-M900-12LQVIA QuadCore E-Series @ 1.2GHzMini-ITX board with 1.2GHz VIA QuadCore E-Series CPU with HDMI, VGA, LVDS, 8 USB 2.0, 4 COM, Gigabit Ethernet, 2 SATA, PCI, PCIe, ATX power connector
EPIA-M900-16LVIA Nano® X2 E-Series @ 1.6GHzMini-ITX board with 1.6GHz VIA Nano® X2 E-Series CPU with HDMI, VGA, LVDS,
8 USB 2.0, 4 COM, Gigabit Ethernet, 2 SATA, PCI, PCIe, ATX power connector
EPIA-M900-10LEVIA Eden® X2 @ 1.0GHzFanless Mini-ITX board with 1.0GHz VIA Eden® X2 CPU, LVDS, HDMI, VGA, 8 USB 2.0, 4 COM, Gigabit Ethernet, 2 SATA, PCI, PCIe, ATX power connector

EPIA-M900 Accessories

Part NumberDescription
I/O Expanison Cards
EXT-PCIOne to two PCI riser card
Power Boards
PWB-M120120W DC-DC power board, voltage range from 12V – 24V
Wireless Modules
EMIO-1533-00A2VNT9271 IEEE 802.11 b/g/n USB Wi-Fi module with assembly kit
