概述

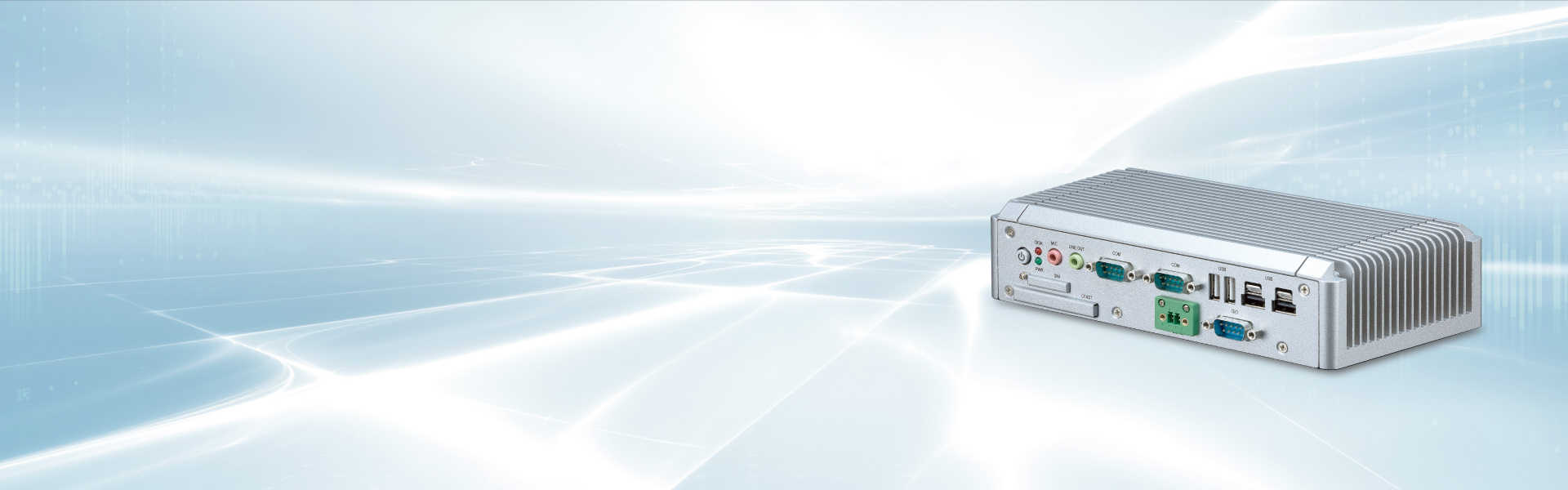

威盛AMOS-3002無風扇工控系統
威盛AMOS-3002採用堅固型機身設計，是一款超精簡型無風扇嵌入式系統，可為車載信息服務、車載控制、M2M控制器、數位電子看板及自動查詢終端等應用提供多功能、高度可靠的解決方案。
硬體
威盛AMOS-3002搭載1.0GHz威盛Eden® X2處理器及VX900H多媒體系統晶片組，採用無風扇堅固型機身設計，擁有豐富的I/O界面和網路連接效能，安裝方式支援壁掛/桌面/VESA支架幾種選擇。
該系統整合廣泛的I/O連接效能，包括2個COM界面、1個CFast卡槽、6個USB 2.0界面，其中2個可解鎖界面用於加強系統堅固性、1個DIO界面、1個VGA界面、1個HDMI界面以及2個GLAN界面，並通過1個迷你PCIe擴展槽提供可選的Wi-Fi及3G網路支援。
軟體
威盛AMOS-3002可與Microsoft® Windows® 7、Windows® CE 7.0、Windows® CE 6.0、Windows® CE 5.0、Windows® XP及流行的Linux操作系統完全相容。客戶可以利用威盛行業領先的硬體及軟體支援，包括軟體解決方案包及威盛Smart ETK（嵌入式套件）打造客制化設計，加快產品上市。
威盛Smart ETK提供1個便於系統開發商利用威盛嵌入式平臺控制和監控GPIO界面的應用程序界面（API）、看門狗定時器、硬體管理、閃存及其它功能。
此外，還支援局域網喚醒（WOL）及預啓動執行環境（PXE），允許為大多數環境遠程管理物聯網設備。
應用
憑借其堅固的精簡型設計、豐富的網路連接選擇及各種可擴展的I/O選擇，威盛AMOS-3002為各種嵌入式、物聯網及M2M應用提供理想的解決方案，包括車隊及運輸管理，以及工業自動化的數據收集終端。
數據資料
取得PDF版本之AMOS-3002規格書，或瀏覽以下訊息:
| Model Name | AMOS-3002 |
|---|---|
| Processor | 1.0GHz VIA Eden® X2 |
| Chipset | VIA VX900H Media System Processor |
| BIOS | AMI BIOS, 8Mbit Flash memory |
| System Power Management | Wake-on LAN, keyboard power-on, timer power-on, system power management, AC power failure recovery, Watch Dog timer control |
| System Memory | 1 DDR3 1066 SODIMM socket Up to 4GB memory size |
| Storage | Supports 1 CFast Flash Supports 1 2.5” SATA HDD/SSD (optional) |
| Graphics | Integrated VIA C-9 HD DX9 3D/2D graphics with MPEG-2, WMV9, VC1 and H.264 video decoding acceleration |
| Audio | VIA VT2021 High Definition Audio Codec |
| Display I/O | 1 HDMI port 1 VGA port supporting VGA resolutions up to 1920 x 1200 pixels Dual independent VGA + HDMI display at different resolutions, pixel depths, and refresh rates |
| USB | 6 USB 2.0 ports, including 2 lockable USB ports for secure connections |
| LAN | VIA VT6130 PCIe Gigabit Ethernet controller |
| COM | Integrated in VX900H |
| Expansion I/O | 1 MiniPCIe slot |

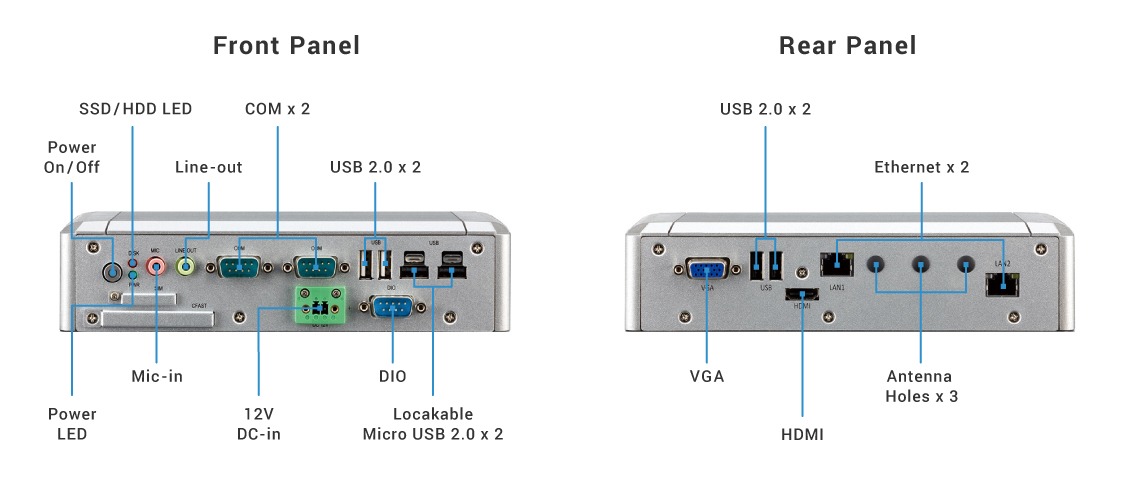

| Front I/O | 1 CFast flash disk slot 2 USB 2.0 ports 2 COM ports for 1 RS-232 and 1 RS-232/422/485 1 DIO port for 8-bit GPIO 2 Lockable USB 2.0 ports 2 Audio jacks: Line-in and Mic-out 1 SIM card slot 1 Power on/off button 1 Red LED for HDD activity 1 Green LED for power status 1 2-pole Phoenix DC jack |
| Back Panel I/O | 2 USB 2.0 ports 1 HDMI port 1 VGA port 2 Gigabit Ethernet ports |
| Power Supply | 12V DC-in (typical: 23W) |
| Operating System | Windows® 7, WES 7, Linux |
| Watch Dog Timer | System reset; programmable 1-255 sec |
| Mechanical Construction | Aluminum top chassis housing Metal chassis housing Dual removable front & rear metal face plate |
| Mounting | Wall/table/VESA mountable |
| Dimensions | -1D10A2: 197mm(W) x 49mm(H) x 104mm(D) (7.75" x 1.92" x 4.09") -2D10A2: 197mm(W) x 66mm(H) x 104mm(D) (7.75" x 2.59" x 4.09") |
| Weight | -1D10A2: 1.4kg (3.08lbs) -2D10A2: 1.8kg (4.02lbs) |
| Operating Temperature | -20 °C ~ 60°C for 1.0GHz VIA Eden® X2 processor 0 °C ~ 45°C when system equipped with 2.5” hard disk drive (-2D10A1 model) |
| Storage Temperature | -20 °C ~ 70 °C |
| Operating Humidity | 0% ~ 95% (relative humidity; non-condensing) |
| Vibration Loading During Operation | With CFast Flash disk: 5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis |
| Shock During Operation | With CFast Flash disk: 5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis |
| Compliance | CE / FCC |
下載
AMOS-3002 文件
| 文件 | 版本 | 日期 |
|---|---|---|
| 用戶手冊 | v1.06 | 2018-05-21 |
| Hot fix for Hibernation for CFast | v1.00 | 2012-05-18 |
AMOS-3002 BIOS / BIOS Flash Utility
| 軟體 | 版本 | 日期 |
|---|---|---|
| BIOS | v1.02 | 2013-01-22 |
| BIOS Flash Utility for DOS | v1.054a | 2013-05-22 |
AMOS-3002 驱动程式下载
| 驅動程式 | 版本 | 日期 |
|---|---|---|
| Smart ETK | ||
| Smart ETK for WinXP / Win7 64bit for GPIO and Watch Dog Timer | v1.0.0.12 | 2013-08-22 |
| Smart ETK for WinXP / Win7 32bit for GPIO and Watch Dog Timer | v1.0.0.12 | 2013-08-22 |
| Windows® 7 64bit | ||
| Audio | v8.700e | 2010-08-04 |
| EMIO-2531 miniPCIe Wi-Fi + Bluetooth | v1.00 | 2016-11-01 |
| EMIO-2550 miniPCIe 3G/GPS | v1.00 | 2016-11-17 |
| SATA | v1.17.63.1 | 2011-05-19 |
| Ethernet | v1.42 | 2015-02-10 |
| Hyperion Pro 4 in 1 | v3.40a | 2012-07-03 |
| Windows® 7 32bit | ||
| Audio | v8.700e | 2010-08-04 |
| EMIO-2531 miniPCIe Wi-Fi + Bluetooth | v1.00 | 2016-11-01 |
| EMIO-2550 miniPCIe 3G/GPS | v1.00 | 2016-11-17 |
| Ethernet | v1.42 | 2015-02-10 |
| Hyperion Pro 4 in 1 | v3.40a | 2012-07-03 |
| SATA | v1.17.63.1 | 2011-05-19 |
| Windows® XP 32bit | ||
| Audio | v8.700e | 2010-08-04 |
| Ethernet | v1.79a | 2016-12-01 |
| Hyperion Pro 4 in 1 | v3.40a | 2012-07-03 |
| SATA | v1.17.63.1 | 2011-05-19 |
| USB 2.0 | v2.70 | 2005-09-27 |
| Windows® CE8 | ||
| Windows® CE8 BSP | v8.0.0 | 2015-08-14 |
| Windows® CE7 | ||
| Windows® CE7 BSP | v7.0.3 | 2015-08-14 |
| Windows® CE6 | ||
| Windows® CE6 BSP | v6.01.48 | 2010-09-02 |
| Windows® CE5 | ||
| Windows® CE5 BSP | v5.01.48 | 2010-11-29 |
訂購
AMOS-3002 訂購資訊
| 零件編號 | CPU | 描述 |
|---|---|---|
| AMOS-3002-1D10A2 | VIA Eden® X2 @ 1.0GHz | 1.0GHz VIA Eden® X2 CPU based fanless embedded system with HDMI, VGA, 4 USB 2.0, 2 Lockable USB 2.0 , 2 COM, DIO, 2 Gigabit Ethernet, CFast socket, 12V DC-in power 包裝清單: AMOS-3002 system, VESA bracket, Wall mount bracket, Thermal pad for memory, Thermal pad for CFast, Bottom washer rubber |
| AMOS-3002-2D10A2 | VIA Eden® X2 @ 1.0GHz | 1.0GHz VIA Eden® X2 CPU based fanless embedded system with HDMI, VGA, 4 USB 2.0, 2 Lockable USB, 2 COM, DIO, 2 Gigabit Ethernet, Hard Disk Drive Bay, CFast Socket, 12V DC-in power 包裝清單: AMOS-3002 system, VESA bracket, Wall mount bracket, Thermal pad for memory, Thermal pad for CFast, Bottom washer rubber |
AMOS-3002 配件
| 零件編號 | 描述 |
|---|---|
| 電力配件 | |
| 99G63-020316 | AC-to-DC Adapter, 2-pole, DC 12V/5A, 60W |
| 99G33-02032C | Power Cord, 180cm, USA type |
| 99G33-02034C | Power Cord with PSE mark, 180cm for Japan market |
| 99G33-02033C | Power Cord, 180cm, Europe type |
| 無線模組 | |
| EMIO-2531-00A1 | VAB-820-W-M IEEE 802.11b/g/n miniPCIe Wi-Fi & Bluetooth module with assembly kit and antenna |
| EMIO-2550-00A1 | 3.75G HSPA/UMTS mobile broadband full size miniPCIe module with GPS and SIM card slot |
| EMIO-2550-01A1 | 3.75G HSPA/UMTS mobile broadband full size miniPCIe module |
