EPIA-P910

  • Compact 10cm x 7.2cm Pico-ITX form factor
  • 1.2GHz VIA Eden® X4 processor
  • DX11 graphics with MPEG-2/WMV9/VC1/H.264 decoding acceleration
  • One Mini HDMI and one VGA port
  • Multiple expansion options

Overview

VIA EPIA-P910 Pico-ITX Board

The VIA EPIA-P910 integrates the advanced performance of the 1.2GHz VIA Eden® X4 processor with the superior multimedia capabilities of the VIA VX11H media system processor on a highly compact Pico-ITX form factor to provide a versatile platform for building a diverse range of ultra-small form factor devices for healthcare, logistics, fleet management and a myriad of other vertical market applications.

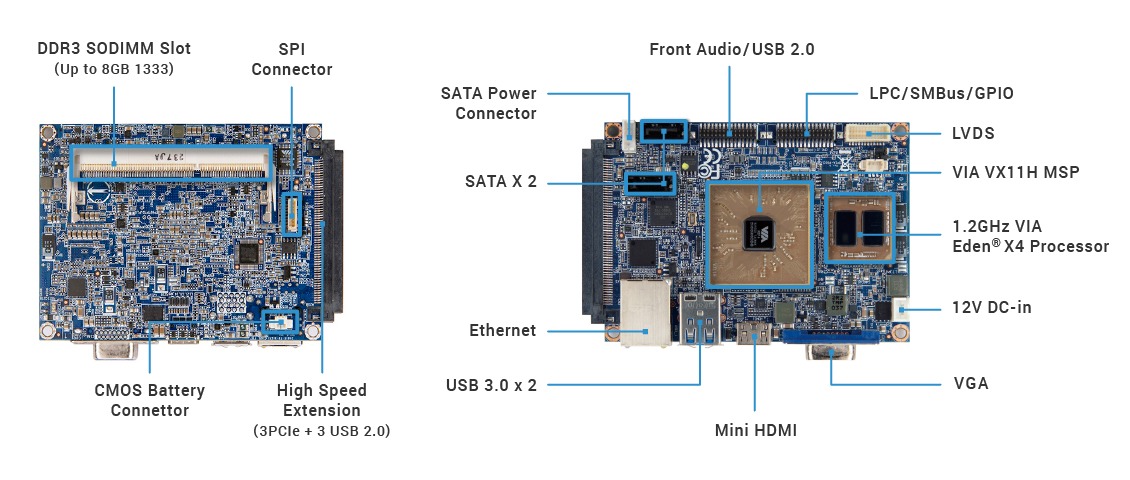

Hardware

Based on the Pico-ITX form factor measuring just 10 cm x 7.2 cm, the VIA EPIA-P910 comes with a rich set of I/O and connectivity features, including two USB 3.0 ports, one Gigabit Ethernet port, one Mini HDMI port, and one VGA port. The functionality of the VIA EPIA-P910 can be enhanced using its onboard pin headers and a variety of expansion cards and modules.

Software

The VIA EPIA-P910 is compatible with Windows® 10, Windows® 8.1, Windows® 8, Windows® 7, WES7, and Windows® XP, as well as most popular Linux distributions. A wide range of software development tools are also available, including the VIA Smart ETK.

Expandability

The VIA EPIA-P910 can be equipped with a wide variety of expansion cards and modules, including a front I/O card, an optional high-speed Wi-Fi module, and I/O expansion cards supporting up to four COM ports.

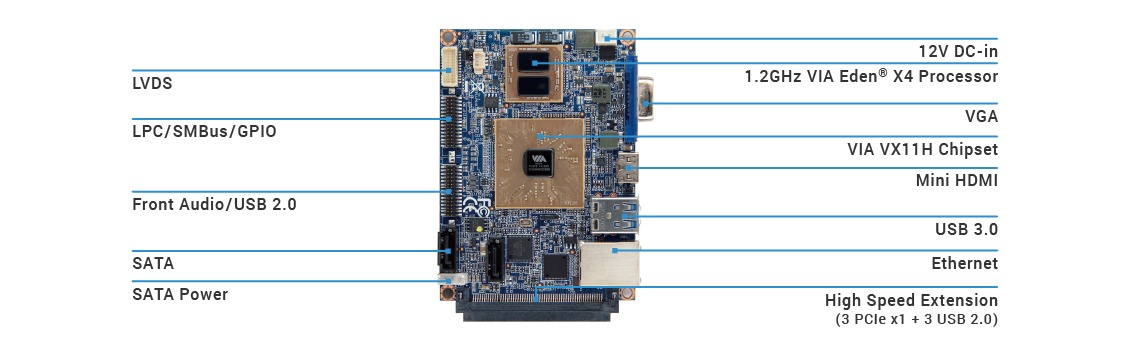

Datasheet

Get the PDF version of the EPIA-P910 datasheet, or browse the information below:

Model NameEPIA-P910-12QE
Processor1.2GHz VIA Eden® X4 (Fanless)
ChipsetVIA VX11H Media System Processor
BIOSAMI Aptio UEFI BIOS, 32Mbit Flash memory
System Memory1 DDR3 1333 SODIMM socket
Up to 8GB memory size
Storage2 SATA connectors
GraphicsIntegrated C-640 DX11 3D/2D graphics with MPEG-2, WMV9, VC1 and H.264 video decoding acceleration video decoding acceleration
LAN1 VIA VT6130 PCIe Gigabit Ethernet controller
AudioVIA VT2021 High Definition Audio Codec
Super I/OFintek F81801U-I
Expansion I/O3 PCIe x1 + 3 USB 2.0 (through high speed extension)
Onboard I/O2 SATA connectors
1 SATA power connector
1 USB 2.0 pin header for 3 ports
1 Single-channel 18/24-bit LVDS panel connector
1 LPC pin header
1 SMBus pin header
1 Digital I/O pin header (4 GPI + 4 GPO)
1 Audio pin header for Line-in, Line-out, Mic-in
1 Smart Fan pin header for CPU
1 Backlight control for panel
1 DC-in connector
3 PCIe x1 + 3 USB 2.0 ports (through high speed extension)
Back Panel I/O2 USB 3.0 ports
1 Mini HDMI port
1 VGA port
1 Gigabit Ethernet port
Power Supply12V DC-in
Operating SystemWindows® 10 / 8.1 / 8 / 7, WES 7, Linux
System Monitoring and ManagementWake-on-LAN, Keyboard Power-on, Timer Power-on, System power management, AC power failure recovery, Watch Dog Timer
Operating Temperature0°C ~ 60°C
Operating Humidity0% ~ 95% (non-condensing)
Form FactorPico-ITX (10cm x 7.2cm, 3.9" x 2.8")
ComplianceCE/FCC

Downloads

EPIA-P910 Documentation

DocumentVersionDate
User Manualv2.022016-06-13

EPIA-P910 BIOS / BIOS Flash Utility

SoftwareVersionDate
BIOSv3.012015-12-04
UEFI Flash Utility for DOSv2.2.92015-01-19

EPIA-P910 Driver Downloads

DriverVersionDate
Windows® 10 32/64bit
Audiov11.1100e2016-04-20
EMIO-5531 USB Wi-Fi + Bluetoothv1.002016-11-01
Hyperion Pro 4 in 1v3.40b2016-02-19
VGAv32.00.00h2016-02-19
Windows® 8.1 64bit
Audiov11.07002016-03-23
EMIO-5531 USB Wi-Fi + Bluetoothv1.002016-11-01
Hyperion Pro 4 in 1v3.40b2013-10-23
VGAv32.00.00e2014-12-19
Windows® 8.1 32bit
Audiov11.07002016-03-23
EMIO-5531 USB Wi-Fi + Bluetoothv1.002016-11-01
Hyperion Pro 4 in 1v3.40b2013-10-23
VGAv32.00.00e2014-12-19
Windows® 8 64bit
Audiov10.1500c2013-01-29
EMIO-5531 USB Wi-Fi + Bluetoothv1.002016-11-01
Ethernetv1.37a2010-12-28
Hyperion Pro 4 in 1v3.40b2013-10-23
VGAv30.00.03c2013-02-01
Windows® 8 32bit
Audiov10.1500c2013-01-29
EMIO-5531 USB Wi-Fi + Bluetoothv1.002016-11-01
Ethernetv1.37a2010-12-28
Hyperion Pro 4 in 1v3.40b2013-10-23
VGAv30.00.03c2013-02-01
Windows® 7 64bit
Win7 Hotfix Before Driver Installationv1.002016-08-22
Audiov11.07002016-03-23
EMIO-5531 USB Wi-Fi + Bluetoothv1.002016-11-01
Ethernetv1.37a2010 12 28
Hyperion Pro 4 in 1v3.40a2012-07-03
SDIOv1.102013-01-11
USB 3.0v3.202012-08-15
VGAv30.00.03c2013-02-01
Windows® 7 32bit
Win7 Hotfix Before Driver Installationv1.002016-08-22
Audiov11.07002016-03-23
EMIO-5531 USB Wi-Fi + Bluetoothv1.002016-11-01
Ethernetv1.37a2010-12-28
Hyperion Pro 4 in 1v3.40a2012-07-03
SDIOv1.102013-01-11
USB 3.0v3.202012-08-15
VGAv30.00.03c2013-02-01

Ordering

EPIA-P910 Ordering Information

Part NumberSoCDescription
EPIA-P910-12QEVIA Eden® X4 @ 1.2GHzPico-ITX Board with 1.2GHz VIA Eden® X4 CPU, Mini HDMI, VGA, LVDS, 2 USB 3.0, 6 USB 2.0, Gigabit Ethernet, 2 SATA, 12V DC-in

Packing List: EPIA-P910 board, DC power cable, SATA cable, SATA power cable
Order Sample

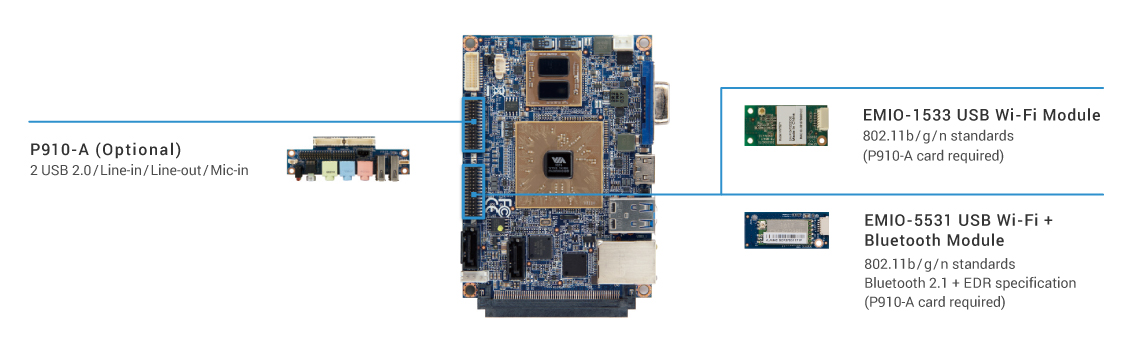

EPIA-P910 I/O Accessories

Part NumberDescription
I/O Expanison Cards
EPIA-P910-AFront I/O card with 2 LEDs, 1 power button, 3 audio jacks and 2 USB 2.0
LPC-01Expansion module for four COM ports
LPC-02Expansion module for four COM ports (5V or 12V)
LPC-04Expansion module for two or four COM ports (5V or 12V)
Wireless Accessories
EMIO-1533-00A2VNT9271 IEEE 802.11 b/g/n USB Wi-Fi module with assembly kit and antenna
EMIO-5531-00A1VAB-820-W IEEE 802.11b/g/n USB Wi-Fi & Bluetooth module with assembly kit and antenna
