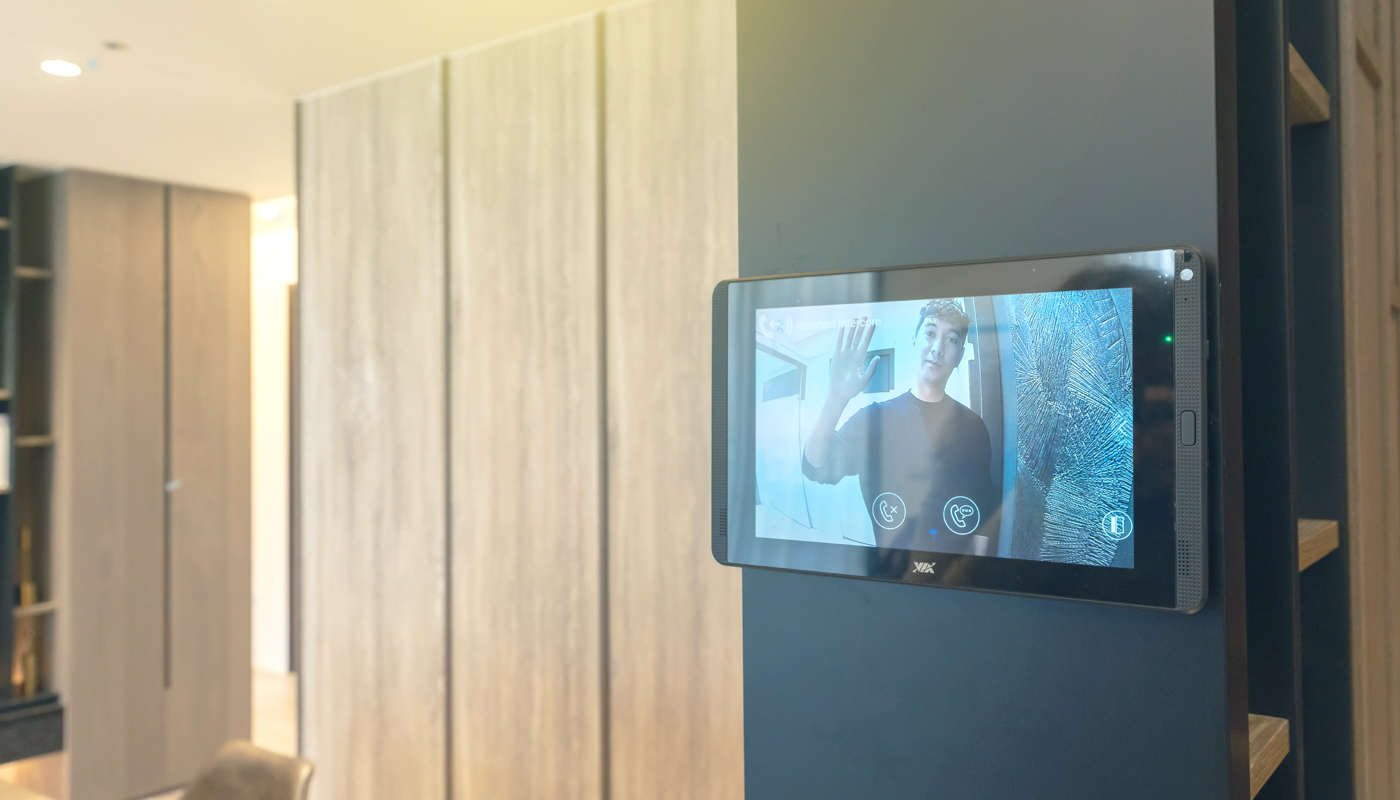

Live video monitoring and screenshot capture

Live video monitoring and screenshot capture

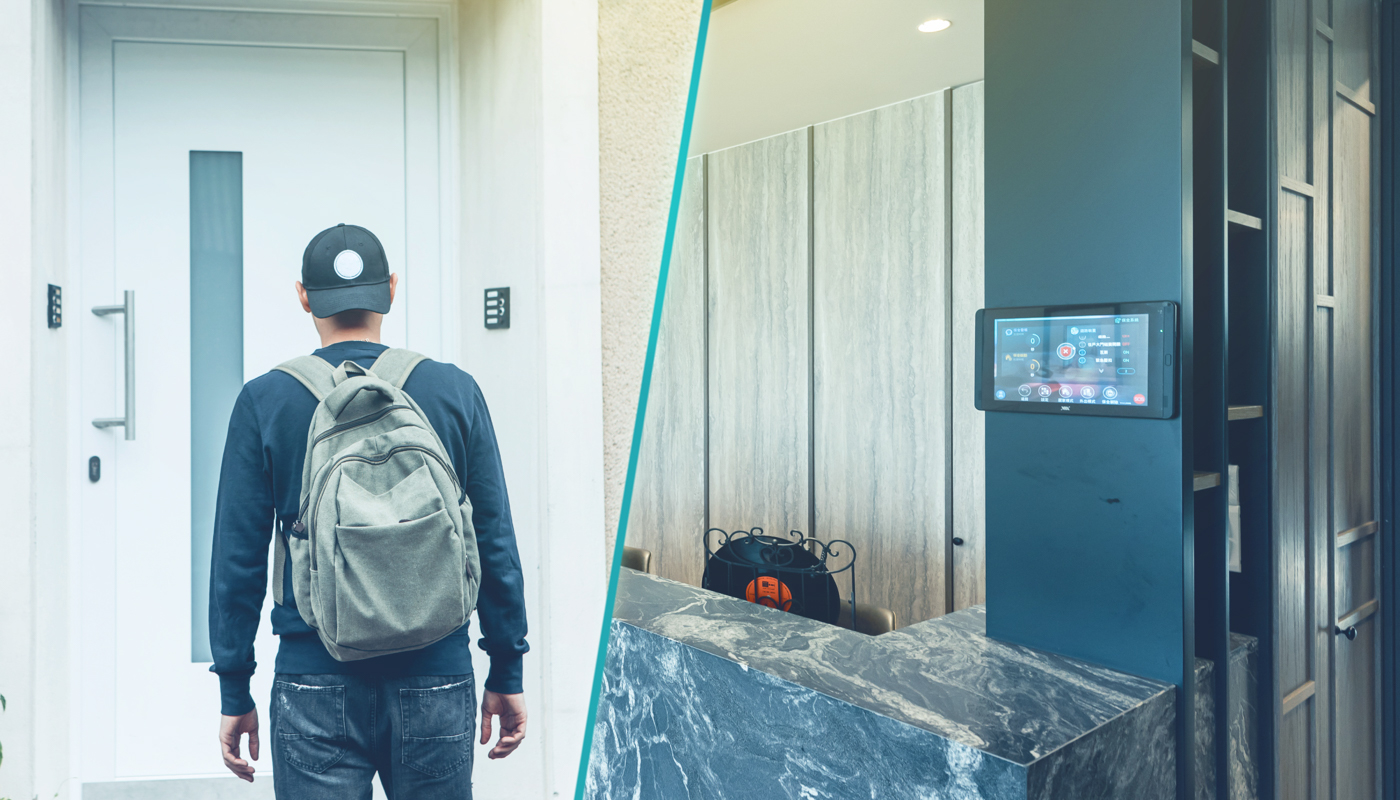

Two-way audio calls

Two-way audio calls

7”/10” capacitive touch screen

7”/10” capacitive touch screen

.

Overview

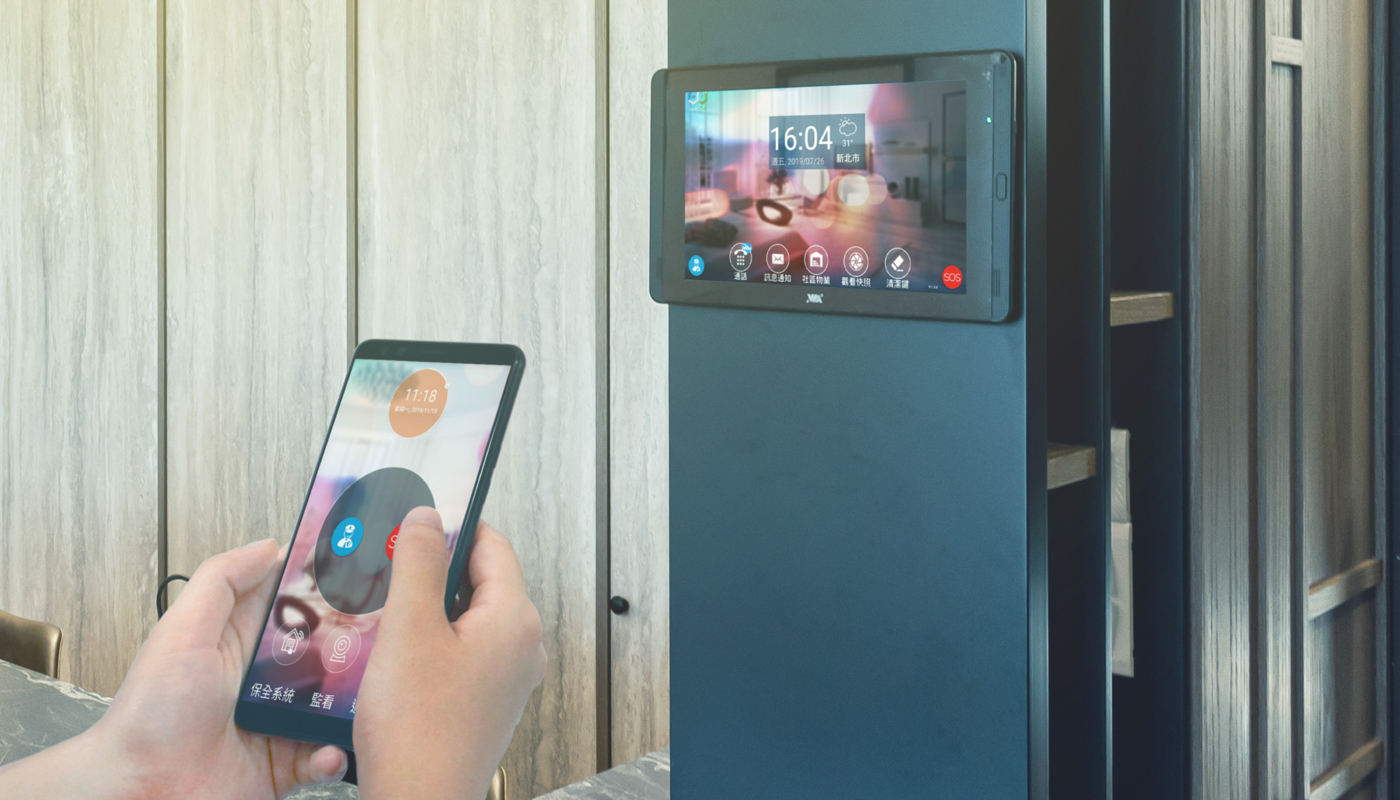

The VIA Home Automation Tablet puts all the information residents need to protect the safety of their home at their fingertips. Its high-resolution 7” or 10” screen and intuitive interface make it easy to verify the identity of visitors requesting entry to the building and manage security alerts and other messages. For more details, download your copy of the VIA Intelligent Building Solutions brochure here.

Specifications

VIA Smart Home Automation Tablet (SHO-103V) 10”

VIA Smart Home Automation Tablet (SHO-703V) 7”

Features

  • Two-way audio calls
  • Live video monitoring and screenshot capture
  • Automatic OTA updates

Display

  • 10” or 7” capacitive touch screen supporting 1280 x 800 resolution
  • Automatic screen off

Audio

  • Compatible with fixed and wireless phones
  • Two-way voice

Connectivity

  • 10/100 Ethernet (RJ45)

Power

  • 12V DC 5A power connector

Operating Temperature Range

  • 0°C ~ 45°C

Operating Humidity

  • 10% – 90% (RH)

Materials

  • System: aluminum alloy
  • Enclosure: metal coating

Dimensions

  • 400mm x 210mm x 44mm (W x D x H)

Installation

  • 10” model: 281.5mm x174mm x20.5mm (W x D x H) (not including bracket)
  • 7” model: 213.5mm x 120mm x 20.5mm (W x D x H) (not including bracket)

Get In Touch

Transform your home into a smart sanctuary with the feature-rich VIA Home Automation Tablet. Contact us for more information!

Get in Touch

Documentation
