Overview
VIA Mobile360 D700 AI Dash Cam
Boost driver attentiveness and enhance fleet efficiency with the VIA Mobile360 D700 AI Dash Cam. Combining cutting-edge AI-powered accident prevention and driver safety features with ultra-reliable 4G LTE connectivity and rapid cloud integration, this robust and high-performance dual-camera device is ideal for the most demanding commercial-grade fleet management applications – from taxi, ride-hailing, and last-mile delivery services to long-distance trucking, logistics, and law enforcement.

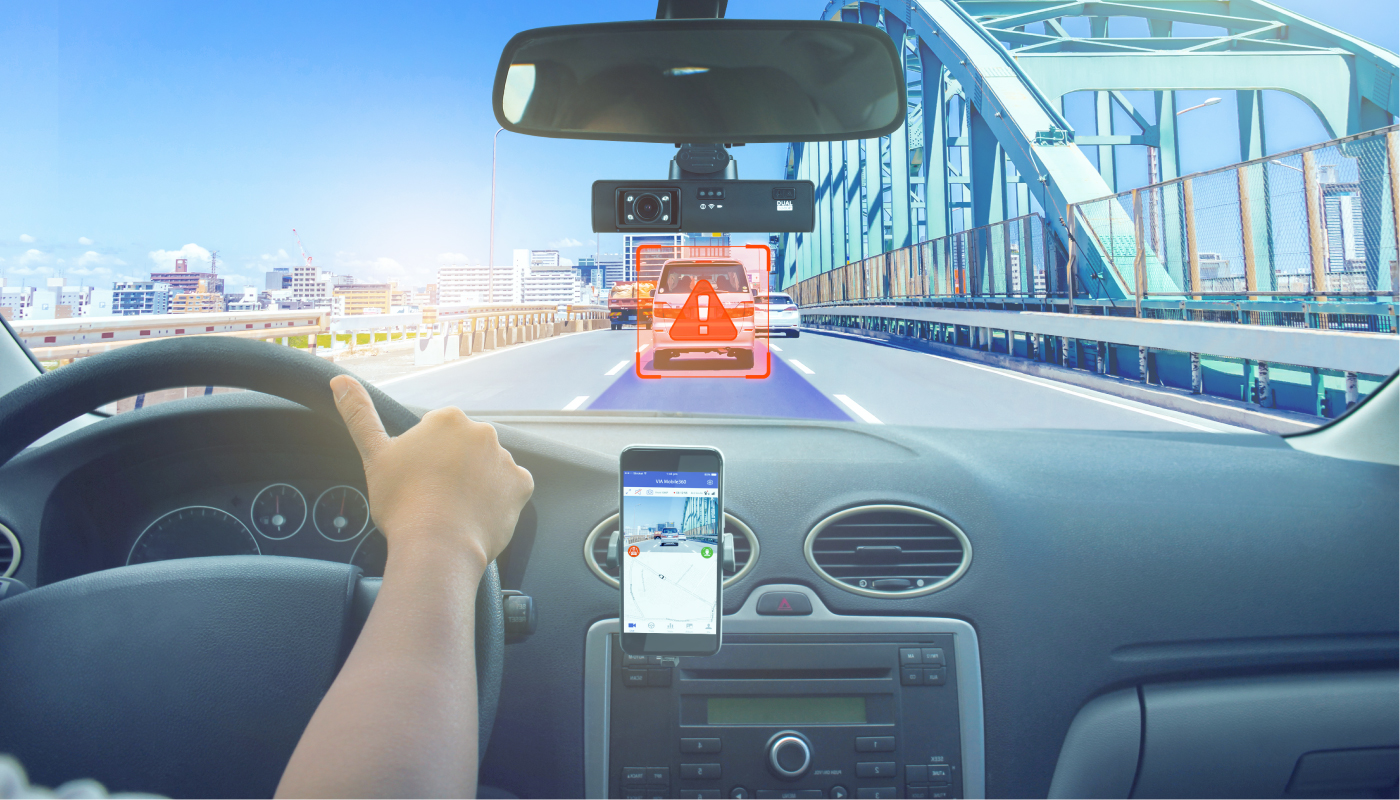

With its LDW (Lane Departure Warning) and FCW (Forward Collision Warning) advanced driving assistance features, the D700 prevents accidents by identifying potential dangers on the road ahead. The device’s DSS (Driver Safety System) ensures that drivers remain attentive when behind the wheel by alerting them when it detects distracted driving, drowsiness, smartphone usage, and smoking.
A comprehensive suite of VIA Fleet SDK, EVK, and BSP packages facilitates the deployment of the device with all leading commercial cloud platforms. The VIA Fleet AWS Cloud SDK and VIA Fleet Cloud Management Portal accelerate the integration of AWS applications and services. A 30-day demonstration of the VIA Fleet Cloud Management Portal is available for you to evaluate real-time tracking, collision alerts with video upload, trip history, and a host of other fleet management functions enabled on the device.
Hardware
With its dual 1080p front dash and interior cameras, the VIA Mobile360 D700 AI Dash Cam simultaneously captures and processes vibrant HD video footage of the driver and occupants of the car and the prevailing road conditions ahead of it. Footage can be stored locally using a Micro SD card and can be uploaded to the cloud over 4G or Wi-Fi. Customizable alerts
can be set to enable real-time video uploads of collision alerts to the cloud using 4G wireless.
Certified by AT&T, T-Mobile, and Verizon, the VIA Mobile360 D700 AI Dash Cam delivers reliable 4G
connectivity with the world’s leading carriers. This commercial-grade device also supports Wi-Fi and GPS to enable real-time route tracking and monitoring via a cloud portal.
With its CAN bus support, the D700 enables the collection of rich vehicle usage data such as speed, distance, idle time, and fuel consumption that can be analyzed to identify opportunities for optimizing fleet efficiency and safety. Its 9-36V DC-in power supply allows in-vehicle power delivery using a hard-wire installation via the vehicle’s fuse box.
Other features included in this lightweight small footprint device include a Cortex-A53 Dual Core SoC, 512MB DDR3L DRAM, 256MB SPI Flash Memory, a 3-Axis G-sensor, one Micro SIM card slot, one Micro SD card slot, and one Micro USB 2.0 port.
AI Safety Features
The VIA Mobile360 D700 supports LDW, FCW, and DSS AI safety features in a variety of different combinations. Its DSS features comprise Distracted Driving, Driver Fatigue, Phone Usage, and Smoking. Audio alerts are triggered when the device detects potential dangers and the statistics are incorporated into driver score metrics and trip data.
Software
The VIA Mobile360 D700 is optimized for rapid cloud deployments through a comprehensive suite of VIA Fleet SDK, EVK, and BSP packages. The device is AWS IoT Core Qualified and AWS Kinesis Video Streams Qualified to facilitate AWS edge-to-cloud deployments. The VIA Fleet AWS Cloud SDK removes device-side development and enables quick and easy integration into an existing AWS cloud infrastructure through the included cloud APIs – leaving you free to focus on adding your core value adds for your target market. To experience just some of the potential applications and services that can be enabled, a 30-day VIA Fleet Demonstration is also available.
Reference App
Customization
Combining advanced video, wireless, and CAN bus capabilities with a rich software development and cloud integration environment, the VIA Mobile360 D700 AI Dash Cam provides an ultra-reliable solution that can be customized to meet your specific deployment requirements.
Contact us to learn about how we can meet your specific needs and check out these videos below to learn more about the solution.
Datasheet
Get the PDF version of the Mobile360 D700 datasheet, or browse the information below:
| Model Name | Mobile360 D700 |
|---|---|
| Processor | 800MHz ARM Cortex-A53 dual-core SoC |
| System Memory | 512MB DDR3L DRAM |
| Storage | 256MB SPI Flash Memory 1 Micro SD Card slot |
| Wireless Connectivity | 4G LTE module with antenna Wi-Fi 802.11b/g/n/ac + BT 4.2 GPS receiver |
| Camera and Video | Sony iMX307 CMOS Sensor: 1080p, supports HDR 2 1920x1080p @ 29fps FOV: D=116°, H=100°, V=56° Adjust max angle: horizontal left=10°, right=10°, vertical down=30° H.264 encode and decode |
| Sensors | 4 IR LEDs controlled by Light sensor 3-Axis G-Sensor |
| Front Panel I/O | 1 Front camera 1 Light sensor |
| Rear Panel I/O | 1 Rear camera 4 IR LED lights 3 LEDs for power, Wi-Fi and recording status 1 Short record/Two-way call button |
| Left Panel I/O | 1 Speaker |
| Right Panel I/O | 1 Micro USB 2.0 port (for debugging) 1 Micro SD Card slot (512GB max) 1 Micro SIM Card slot 1 12-pin power connector for 6 GPIO (5 GPI, 1 GPO), CAN bus, ACC, power |
| Bottom Panel I/O | 1 Mic |
| Power Supply | 9~36V DC-in |
| Software | Device SDK including Android / iOS smartphone reference apps |
| Cloud Certification | AWS IoT Core Qualified and Kinesis Video Streams Qualified Microsoft IoT Plug and Play Certified |
| Operating System | Linux Kernel 4.1.0 |
| Operating Temperature | -20°C~70°C |
| Mechanical Construction | PC chassis housing |
| Dimensions | 124.52mm(W) x 41.25mm(H) x 95.60mm(D) (4.90" x 1.62" x 3.76") |
| Weight | 0.322kg (0.71lbs) |
| Compliance | CE, FCC, BSMI, TELEC, NCC, CTA, UKCA, PTCRB, GCF |
| Telco Certification | AT&T, T-Mobile, Verizon, UScellular |
Downloads
Mobile360 D700 Documentation
| Document | Version | Date |
|---|---|---|
| User Manual | v1.09 | 2022-03-16 |
| Quick Start Guide | v1.12 | 2022-05-06 |
| VIA Fleet Management Portal Quick Start Guide | v1.08 | 2022-07-29 |
Mobile360 D700 Software Downloads
| Software | Version | Date |
|---|---|---|
| Linux | ||
| Azure IoT PnP Software (0.3MB) | v2.0 | 2020-10-07 |
- Supports Microsoft IoT Plug and Play for Mobile360 D700 platform
- Includes CA certification and library
- For more detailed information, please refer to the following webpage Azure IoT Solutions
Ordering
Mobile360 D700 Ordering Information
| Part Number | SoC | Description |
|---|---|---|
| M360-D700-5D08A0 (For APAC region only) | ARM Cortex-A53 dual-core SoC @ 800MHz | Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC, 512MB DDR3L DRAM, 265MB SPI Flash Memory, Dual 1080p cameras, 4 IR LED lights, Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS, Micro SIM card slot, Micro SD card slot, 12-pin power connector for 6 GPIO, CAN bus & power |
| M360-D700-7D08A0 (For CN region only) | ARM Cortex-A53 dual-core SoC @ 800MHz | Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC, 512MB DDR3L DRAM, 265MB SPI Flash Memory, Dual 1080p cameras, 4 IR LED lights, Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS, Micro SIM card slot, Micro SD card slot, 12-pin power connector for 6 GPIO, CAN bus & power |
| M360-D700-6D08A0 (For EU region only) | ARM Cortex-A53 dual-core SoC @ 800MHz | Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC, 512MB DDR3L DRAM, 265MB SPI Flash Memory, Dual 1080p cameras, 4 IR LED lights, Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS, Micro SIM card slot, Micro SD card slot, 12-pin power connector for 6 GPIO, CAN bus & power |
| M360-D700-3D08A0 (For JP region only) | ARM Cortex-A53 dual-core SoC @ 800MHz | Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC, 512MB DDR3L DRAM, 265MB SPI Flash Memory, Dual 1080p cameras, 4 IR LED lights, Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS, Micro SIM card slot, Micro SD card slot, 12-pin power connector for 6 GPIO, CAN bus & power |
| M360-D700-4D08B1 (For US AT&T / UScellular / Verizon) | ARM Cortex-A53 dual-core SoC @ 800MHz | Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC, 512MB DDR3L DRAM, 256MB SPI Flash Memory, Dual 1080p cameras, 4 IR LED lights, Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS, Micro SIM card slot, Micro SD card slot, 12-pin power connector for 6 GPIO, CAN bus & power |
| M360-D700-DD08A1 (For US T-Mobile) | ARM Cortex-A53 dual-core SoC @ 800MHz | Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC, 512MB DDR3L DRAM, 256MB SPI Flash Memory, Dual 1080p cameras, 4 IR LED lights, Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS, Micro SIM card slot, Micro SD card slot, 12-pin power connector for 6 GPIO, CAN bus & power |
Mobile360 D700 Optional Accessories
| Mounting Bracket | |
| Part Number | Description |
| M360-D700-1HA1A0 | 29mm Short mounting bracket with 3M adhesive tape |
| M360-D700-1HA2A0 | 66.5mm mounting bracket with 3M adhesive tape |
| Cables | |
| Part Number | Description |
| M360-D700-1CC1A0 | OBD II power cable + ACC fuse kit |
