VIA SOM-5200
The VIA SOM-5200 is a SMARC module designed to accelerate the development of advanced edge AI systems and devices. Powered by the MediaTek Genio 520 Octa-core processor, this highly integrated low-power platform delivers blistering AI, graphics, video, and computing performance required a wide range of applications, including smart home, retail, industrial, and commercial use cases.
High-performance MediaTek Genio 520 Octa-Core SoC
Dedicated high-performance Edge AI engine delivering 10 TOPS of powerful on-device processing
Advanced 4K multimedia and dual full HD display support
Platform scalability and rich I/O connectivity
Broad OS support for development
Hardware

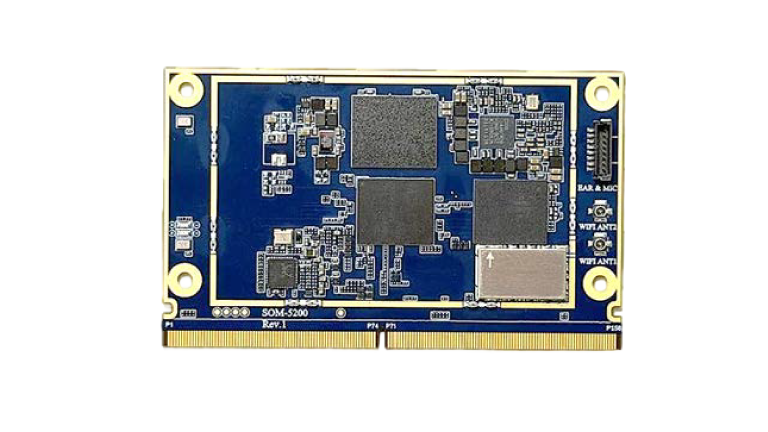

VIA SOM-5200 Module

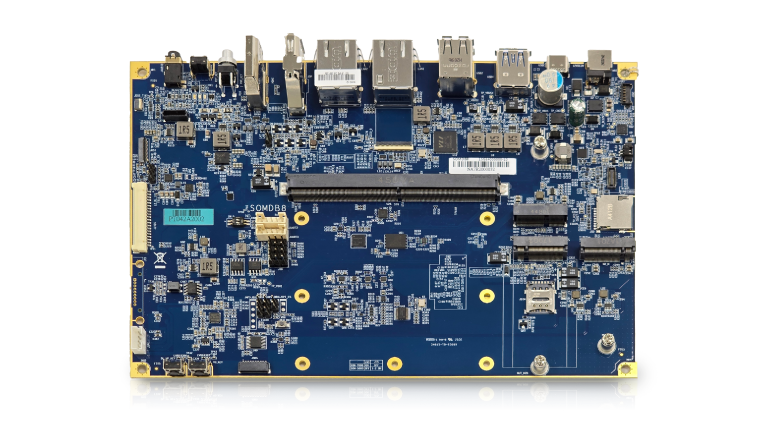

VIA SOMDB8 Carrier Board
The VIA SOM-5200 module is powered by a MediaTek Genio 520 Octa-Core Processor combining two Cortex-A78 cores operating at 2.2GHz and six Cortex-A55 cores running at 2.0GHz with an integrated AI processor, the MediaTek NPU 850, providing up to 10 TOPS for powerful on-device processing.
When combined with the VIA SOMDB8 carrier board, the VIA SOM-5200 module provides a wealth of camera and display integration options. This includes support for one 4-Lane MIPI CSI-2 connector on the SOM-5200 and another on the carrier board, a MIPI DSI display, one HDMI display, and an LVDS single-channel display.
The VIA SOM-5200 module measures 82mm x 50mm (3.22＂×2＂). The VIA SOMDB8 carrier board is based on an SBC form factor measuring 151mm x 134mm (5.94″ x 5.28″). For the full hardware specifications of the VIA SOM-5200 module and VIA SOMDB8 carrier board, download the following datasheet.
Software
VIA SOM-5200 Software Packages
The VIA SOM-5200 BSP supports Android 15, Yocto 5.0, and Debian 12. Software customization services that speed up time to market and minimize development costs are also available.
Get In Touch
The VIA SOM-5200 module can be purchased as a discrete module or together with the VIA SOMDB8 carrier board and optional 4G wireless module. To see how it can be tailored for your specific use cases, contact us for more information!
