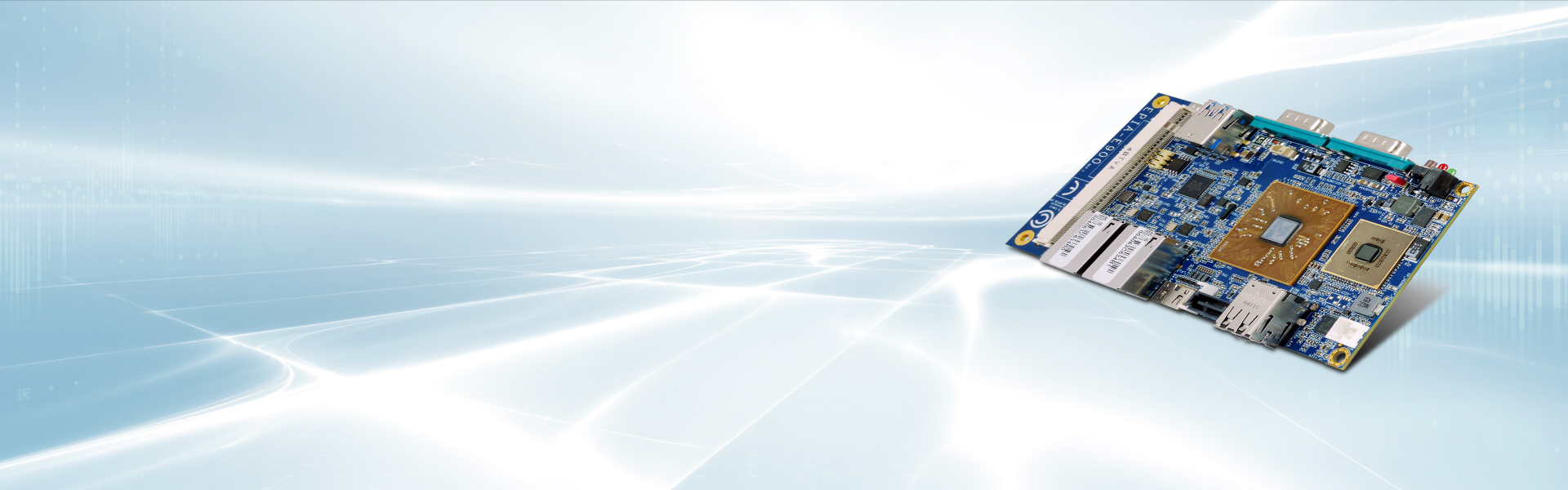

VIA EPIA-E900 Pico-ITXe Board

The VIA EPIA-E900 Pico-ITXe board brings the flexibility of the modular approach to single-board design, creating the most versatile platform for building a diverse range of ultra-small form factor devices for in-vehicle, industrial automation and a myriad of other vertical market applications. With the inclusion of a high-speed MXM connector interface, customers can quickly design custom Smart I/O expansion cards for their specific applications saving both cost and time-to-market.

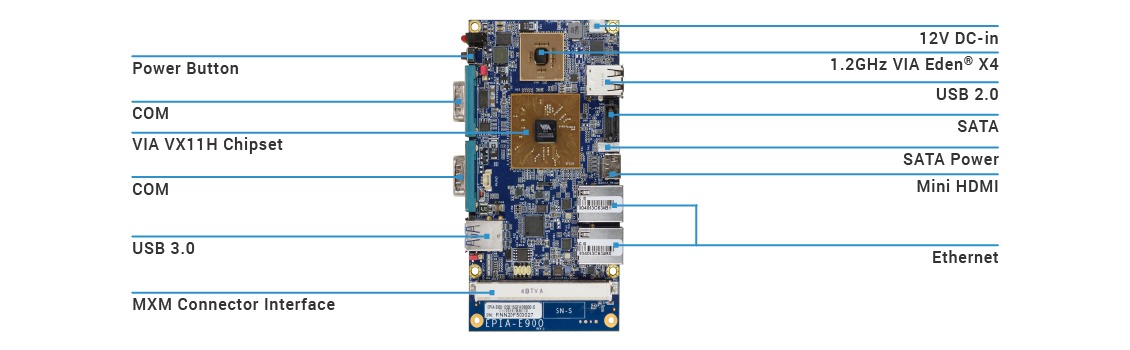

The VIA EPIA-E900 integrates the advanced performance of the 1.2GHz VIA Eden® X4 processor with the superior multimedia capabilities of the VIA VX11H media system processor on a highly compact Pico-ITXe form factor measuring just 13.8 cm x 7.2 cm. VIA EPIA-E900 Pico-ITXe Board The highly-integrated low power platform features a rich set of I/O and connectivity options, including two USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet ports, one Mini HDMI port, 2 COM ports, and one MXM connector for the addition of custom smart I/O expansion cards.


The VIA EPIA-E900 is compatible with Microsoft® Windows® 10 IoT, Windows® 10, Windows® 8.1, Windows® 8, Windows® 7, and WES 7, as well as most popular Linux distributions. A wide range of software development tools are also available, including the VIA Smart ETK.


In addition to its onboard pin headers as well as the optional VIA EMIO-1533 USB Wi-Fi module, customers can leverage the MXM connector to quickly expand functionality to match their unique I/O requirements with the creation of a custom Smart I/O expansion card. The MXM interface supports one SATA, four USB 2.0 ports, one DisplayPort or HDMI port, one single channel 18/24-bit LVDS panel connector, one DVP port, HD Audio, one COM port, one PCIe x 4 slot, one Digital I/O (3GPI + 3GPO), one SMBus, and 1 SPI.


VIA EPIA-E900 Pico-ITXe Board

Get the PDF version of the EPIA-E900 datasheet, or browse the information below:

Model NameEPIA-E900-12QE
Processor1.2GHz VIA Eden® X4 (Fanless)
ChipsetVIA VX11H Media System Processor
BIOSAMI Aptio UEFI BIOS, 32Mbit Flash memory
System Memory1 DDR3 1333 SODIMM socket
Up to 8GB memory size
Storage1 SATA connector
GraphicsIntegrated C-640 DX11 3D/2D graphics with MPEG-2, VC-1 and H.264
video decoding acceleration
LAN2 Realtek RTL8111G PCIe Gigabit Ethernet controllers
AudioThrough MXM support
Super I/OFintek F81801U-1
Expansion I/OMXM connector interface
MXM Connector Interface1 SATA port
4 USB 2.0 ports
1 Display Port or HDMI port
1 Single channel 18/24-bit LVDS panel connector
1 COM port (from VX11)
1 DVP port
1 SMBus
1 Digital I/O (3GPI + 3GPO)
1 HD Audio (codec required)
1 System fan
1 PCIe x4

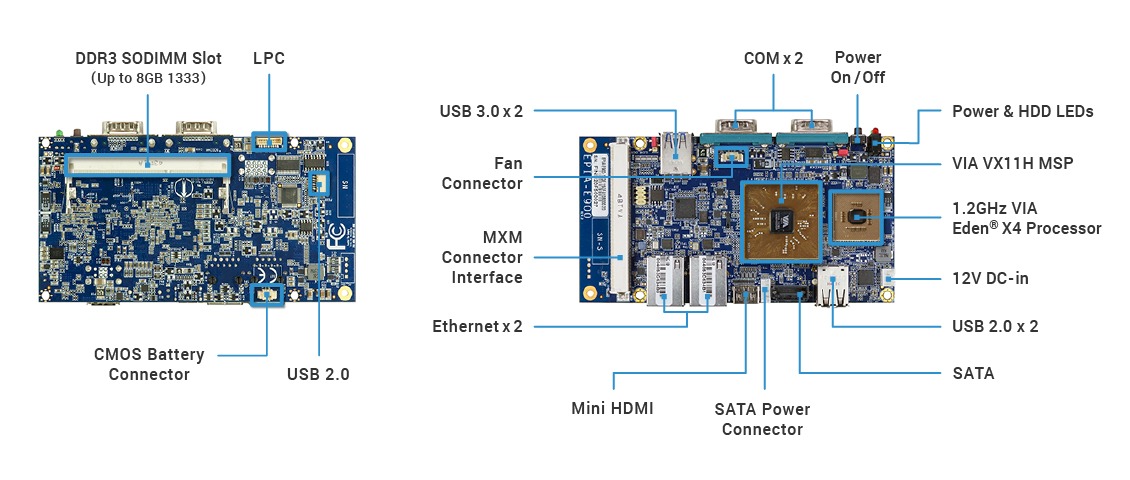

Onboard I/O1 SATA connector
1 SATA power connector
1 USB pin header (supports EMIO-1533 Wi-Fi module)
1 Smart Fan pin header for CPU
1 DC-in connector
Front Panel I/O2 USB 3.0 ports
2 COM ports
1 Power LED
1 Power button
Back Panel I/O2 USB 2.0 ports
1 Mini HDMI port
2 Gigabit Ethernet ports
Power Supply12V DC-in
Operating SystemWindows® 10/8.1/8/7, Win 10 IoT, WES 7, Linux
System Monitoring & ManagementWake-on-LAN, Keyboard Power-on, Timer Power-on, System power management, AC power failure recovery, Watch Dog Timer
Operating Temperature0°C ~ 60°C
Operating Humidity0% ~ 95% (non-condensing)
Form FactorPico-ITXe (13.8cm x 7.2cm, 5.4" x 2.8")


EPIA-E900 Documentation

User Manual
UEFI Flash Tool Operation Guide

EPIA-E900 BIOS / BIOS Flash Utility

UEFI Flash Utility for DOSv2.2.102015-07-06

EPIA-E900 Driver Downloads

Smart ETK
SmartETK for Win 7 64bitv1.0.0.332015-11-17
SmartETK for Win 7 32bitv1.0.0.332015-11-17
Windows® 10 - 32/64bit
EMIO-5531 USB Wi-Fi + Bluetoothv1.002016-11-01
Hyperion Pro 4 in 1v3.40b2016-01-22
Windows® 8/8.1 - 32/64bit
EMIO-5531 USB Wi-Fi + Bluetoothv1.002016-11-01
EMIO-1533 USB Wi-Fiv10.0.0.282013-11-19
Hyperion Pro 4 in 1v3.40b2015-10-06
USB 3.0v4.90a2015-10-06
Windows® 7 - 32/64bit
Win7 Hotfix Before Driver Installationv1.012019-04-22
EMIO-5531 USB Wi-Fi + Bluetoothv1.002016-11-01
Hyperion Pro 4 in 1v3.40b2015-10-06
USB 3.0v3.20b2015-10-06


VIA EPIA-E900 Pico-ITXe Board

EPIA-E900 Ordering Information

Part NumberCPUDescription
EPIA-E900-12QEVIA Eden® X4 @ 1.2GHzPico-ITXe Board with 1.2GHz VIA Eden® X4 CPU, Mini HDMI, 2 USB 3.0, 2 USB 2.0, 2 COM, 2 Gigabit Ethernet, 1 SATA, 12V DC-in

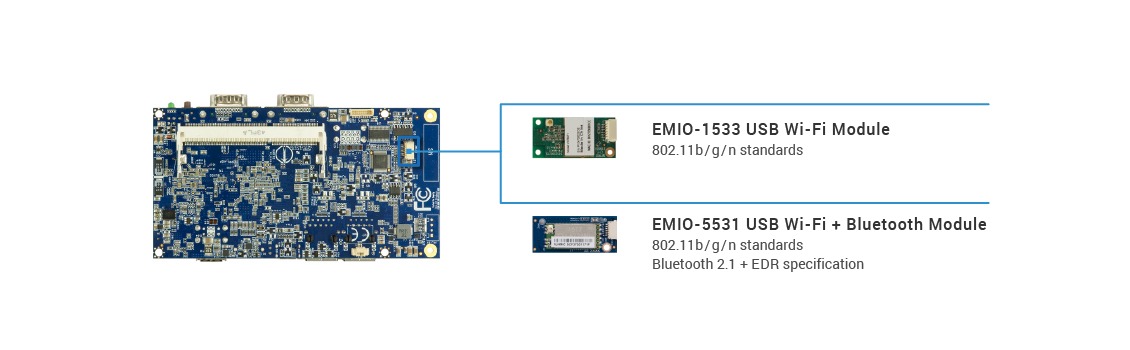

EPIA-E900 Accessories

Part NumberDescription
00GO27100BU2B0D0VNT9271 IEEE 802.11b/g/n USB Wi-Fi dongle
EMIO-1533-00A2VNT9271 IEEE 802.11 b/g/n USB Wi-Fi module with assembly kit and antenna
EMIO-5531-00A1VAB-820-W IEEE 802.11b/g/n USB Wi-Fi & Bluetooth module with assembly kit and antenna
