VIA QSM-8Q80-MM Qseven™ Module
Designed to accelerate the development of next generation automotive systems, the VIA QSM-8Q80-MM uses a 1.6GHz NXP i.MX 8M Mini SoC packing Quad Cortex-A53 cores, plus a low power Cortex-M4 core. Supporting MIPI DSI and CSI interfaces for dashboard display and camera integration, the module enables the development of advanced fleet management and infotainment systems with two-way audio and video communication.
Hardware
Measuring 7.0cm x 7.0cm, the VIA QSM 8Q80-MM is fully compliant with the Qseven™ Rev. 2.1 form factor standard. Supporting a wide operating temperature of 0°C ~ 60°C, the module is designed for optimum durability in automotive applications. A rich multimedia experience is delivered with GCNanoUltra and GC320 graphics processing units, offering H.265/H.264/VP8 video decoding at up to 1080p@60fps.
Device connectivity includes support for 8 GPIO devices, 4 USB 2.0 ports, plus 1 USB 2.0 OTG client port. Onboard storage includes 16GB eMMC 5.1 flash memory and a Micro SD card slot, while connectivity is provided by Gigabit Ethernet with support for Wi-Fi and 4G LTE networking. Other I/O options include SDIO 3.0, I2C, PCIe 2.0, SPI, UART, I2S, PWM and JTAG.
Software
The VIA QSM-8Q80-MM features a Linux BSP which includes the kernel (4.14.98) and bootloader source codes for the 1.6GHz NXP i.MX 8M Mini SoC. Other features include a Tool Chain to help make adjustments to the kernel and to support the VIA QSMDB3 carrier board I/O and other hardware features.
A full set of software customization services that speed up time to market and minimize development costs are also available.
Expandability
Customers can take advantage of our multi-I/O evaluation carrier board, or utilize VIA’s extensive technical support to develop a custom baseboard.
Datasheet
Get the PDF version of the QSM-8Q80-MM datasheet, or browse the information below:
| Model Name | QSM-8Q80-MM |
|---|---|
| Processor | 1.6GHz NXP i.MX 8M Mini Quad/Dual Cortex-A53 and 400MHz Cortex-M4 SoC |
| System Memory | 2GB LPDDR4 SDRAM |
| Storage | 16GB eMMC 5.1 Flash memory |
| Graphics | GCNanoUltra + GC320 GPU 2 integrated, independent 3D/2D and video graphics processing units Graphics engine supporting OpenGL® ES 2.0 hardware acceleration Supports H.265/H.264/VP8 video decoding up to 1080p @60fps Supports H.264/VP8 video encoding |
| LAN | AR8031-AL1A-R Gigabit Ethernet Transceiver with RGMII support |
| Audio | I2S Audio Interface |
| PMIC | ROHM BD71847MWV Power Management Integrated Circuit |
| USB | SMSC USB2514i USB 2.0 High-speed 4-port hub controller |
| External RTC | Epson RX8010J |
| Supported Expansion I/O | 1 MIPI DSI (4-Lanes) 4 USB 2.0 1 USB 2.0 OTG client 1 Gigabit Ethernet port 3 SDIO 3.0 3 I2C 1 PCIe 2.0 (1-Lane) 1 SPI 2 UART (TX/RX) 2 I2S 1 PWM 1 JTAG 8 GPIO |
| Onboard I/O | 1 Micro SD Card slot 1 MIPI CSI connector (4-Lanes) 1 Boot selection jumper |
| Operating System | Linux Kernel 4.14.98 |
| Operating Temperature | 0°C ~ 60°C |
| Operating Humidity | 0% ~ 95% (relative humidity; non-condensing) |
| Form Factor | 7.0cm x 7.0cm (2.76" x 2.76") |
| Compliance | Qseven™ Rev. 2.1 module |
Ordering
QSM-8Q80-MM Ordering Information
| Part Number | SoC | Description |
|---|---|---|
| 10GMH164000A0 | NXP i.MX 8M Mini Quad Cortex-A53 and Cortex-M4 SoC @ 1.6GHz/400MHz | Qseven™ module with 1.6GHz NXP i.MX 8M Mini Quad Cortex-A53 and 400MHz Cortex-M4, 16GB eMMC, 2GB LPDDR4 SDRAM, Micro SD card slot |
QSM-8Q80-MM Accessories
| Part Number | Description |
|---|---|
| Wireless Accessories | |

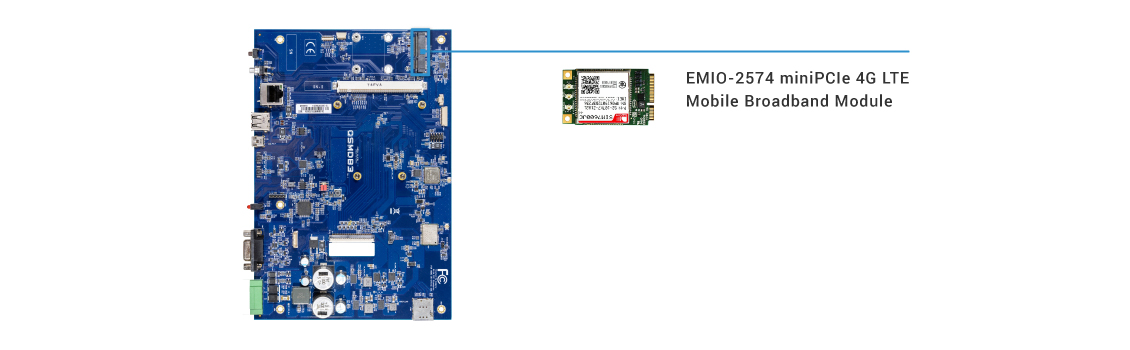

| EMIO-2574-00A0 | SIM7600JC-H-PCIE 4G LTE mobile broadband full-size miniPCIe module with assembly kit and antenna (for Docomo/KDDI/Softbank) Note: 4G LTE module compatibility is dependent on region. Please contact our sales representative to confirm compatibility in your region. |
